免鍵式軸環

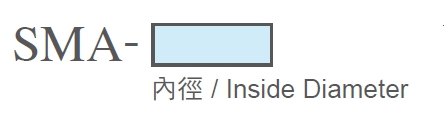

SMA 自動校心型
詳細說明

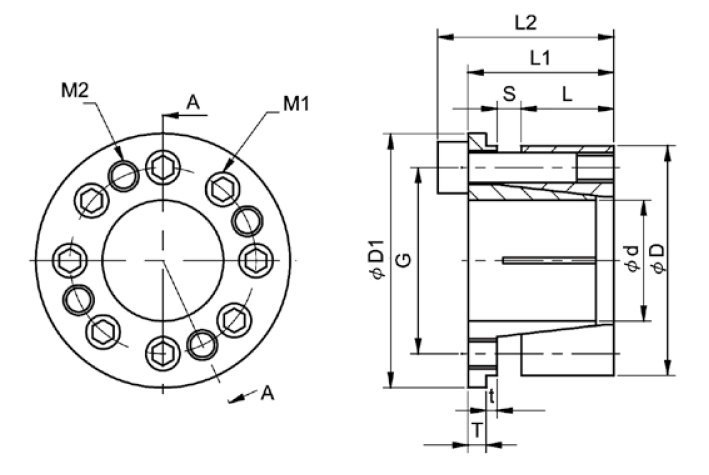

尺寸表 / Dimension
單位(mm)
|
規 格 |
d |
D |
D1 |
G |
L |
L1 |
L2 |
T |
t |
S |
M1 |
M2 |
T |
F |
P |
Ts |
惯性矩J |
重 量 |
PDW 圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
SMA-20 |
20 |
38 |
42 |
30.8 |
15.3 |
24.1 |
29.1 |
3 |
1.8 |
4 |
8-M5 X 18 |
4-M5 |
216 |
21.6 |
130 |
8.8 |
3.70 x 10-6 |
0.144 |
|
|
|
|
SMA-22 |
22 |
40 |
44 |
32.8 |
15.3 |
24.1 |
29.1 |
3 |
1.8 |
4 |
8-M5 X 18 |
4-M5 |
255 |
22.6 |
117 |
8.8 |
4.42 x 10-6 |
0.165 |
|
|
|
|
SMA-24 |
24 |
42 |
46 |
34.8 |
16.3 |
25.1 |
30.1 |
3 |
1.8 |
4 |
8-M5 X 18 |
4-M5 |
363 |
29.9 |
111 |
8.8 |
5.45 x 10-5 |
0.180 |
|
|
|
|
SMA-25 |
25 |
43 |
47 |
35.8 |
17.3 |
26.1 |
31.1 |
3 |
1.8 |
4 |
8-M5 X 18 |
4-M5 |
392 |
31.4 |
102 |
8.8 |
6.15 x 10-5 |
0.188 |
|
|
|
|
SMA-28 |
28 |
46 |
50 |
38.8 |
17.3 |
26.6 |
31.6 |
3.5 |
1.8 |
4 |
10-M5 X 18 |
4-M5 |
441 |
31.4 |
119 |
8.8 |
8.15 x 10-5 |
0.195 |
|
|
|
|
SMA-30 |
30 |
48 |
52 |
40.8 |
17.3 |
26.6 |
31.6 |
3.5 |
1.8 |
4 |
10-M5 X 18 |
4-M5 |
500 |
33.3 |
114 |
8.8 |
9.45 x 10-5 |
0.208 |
|
|
|
|
SMA-32 |
32 |
50 |
54 |
42.8 |
18.3 |
27.6 |
32.6 |
3.5 |
1.8 |
4 |
10-M5 X 18 |
4-M5 |
530 |
33.3 |
104 |
8.8 |
1.14 x 10-4 |
0.219 |
|
|
|
|
SMA-35 |
35 |
57 |
62 |
48.4 |
19.5 |
30 |
36 |
4 |
2 |
4.5 |
8-M6 X 20 |
4-M6 |
883 |
47.6 |
114 |
15.7 |
2.12 x 10-4 |
0.325 |
|
|
|
|
SMA-38 |
38 |
60 |
65 |
51.4 |
20 |
30.5 |
36.5 |
4 |
2 |
4.5 |
10-M6 X 20 |
4-M6 |
1020 |
49.4 |
132 |
15.7 |
2.62 x 10-4 |
0.332 |
|
|
|
|
SMA-40 |
40 |
62 |
67 |
53.4 |
20.5 |
31 |
37 |
4 |
2 |
4.5 |
10-M6 X 20 |
4-M6 |
1079 |
50.3 |
124 |
15.7 |
3.00 x 10-4 |
0.380 |
|
|
|
|
SMA-42 |
42 |
64 |
69 |
55.4 |
20.5 |
31 |
37 |
4 |
2 |
4.5 |
10-M6 X 20 |
4-M6 |
1157 |
51.5 |
120 |
15.7 |
3.32 x 10-4 |
0.405 |
|
|
|
|
SMA-45 |
45 |
67 |
72 |
58.4 |
21 |
31.5 |
37.5 |
4 |
2 |
4.5 |
10-M6 X 20 |
4-M6 |
1285 |
56.9 |
112 |
15.7 |
3.95 x 10-4 |
0.435 |
|
|
|
|
SMA-48 |
48 |
70 |
75 |
61.4 |
21 |
32 |
38 |
4.5 |
2 |
4.5 |
12-M6 X 20 |
4-M6 |
1402 |
58.4 |
129 |
15.7 |
4.75 x 10-4 |
0.460 |
|
|
|
|
SMA-50 |
50 |
72 |
77 |
63.4 |
21.5 |
32.5 |
38.5 |
4.5 |
2 |
4.5 |
14-M6 X 20 |
4-M6 |
1705 |
68.2 |
143 |
15.7 |
5.35 x 10-4 |
0.485 |
|
|
|
|
SMA-55 |
55 |
77 |
83 |
68.4 |
21.5 |
32.5 |
38.5 |
4.5 |
2 |
4.5 |
14-M6 X 20 |
4-M6 |
1883 |
68.5 |
133 |
15.7 |
6.80 x 10-4 |
0.520 |
|
|
|
|
SMA-60 |
60 |
82 |
87 |
73.4 |
22 |
33.5 |
39.5 |
5 |
2 |
4.5 |
15-M6 X 20 |
5-M6 |
2108 |
68.7 |
131 |
15.7 |
8.61 x 10-4 |
0.560 |
|
|
|
|
SMA-65 |
65 |
87 |
92 |
78.4 |
22 |
33.5 |
39.5 |
5 |
2 |
4.5 |
15-M6 X 20 |
5-M6 |
2236 |
68.7 |
124 |
15.7 |
1.05 x 10-3 |
0.610 |
|
|
|
|
SMA-70 |
70 |
97 |
103 |
86.2 |
24 |
36.1 |
44.1 |
5 |
2 |
5.1 |
14-M8 X 25 |
4-M8 |
3285 |
93.2 |
169 |
37.3 |
1.86 x 10-3 |
0.845 |
|
|
|
|
SMA-75 |
75 |
102 |
108 |
91.2 |
24 |
36.1 |
44.1 |
5 |
2 |
5.1 |
15-M8 X 25 |
5-M8 |
3746 |
99.1 |
172 |
37.3 |
2.22 x 10-3 |
0.932 |
|
|
|
|
SMA-80 |
80 |
107 |
113 |
96.2 |
25 |
37.1 |
45.1 |
5 |
2 |
5.1 |
15-M8 X 25 |
5-M8 |
4129 |
103 |
158 |
37.3 |
2.67 x 10-3 |
1.100 |
|
|
|
|
SMA-85 |
85 |
112 |
118 |
101.2 |
25 |
37.1 |
45.1 |
5 |
2 |
5.1 |
15-M8 X 25 |
5-M8 |
4521 |
106 |
151 |
37.3 |
3.10 x 10-3 |
1.270 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
★本產品提供客製無電解鎳和鍍鋅服務 / Electronless Nickel Plating or Galvanized is optional
