擺線減速機/變速機
立式變速機

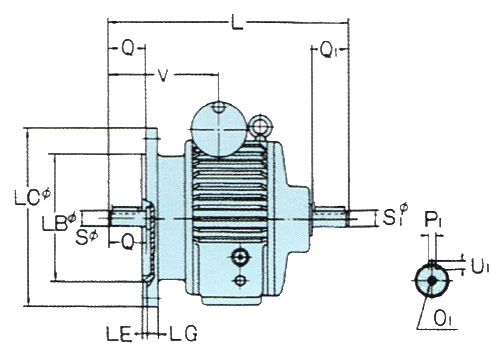

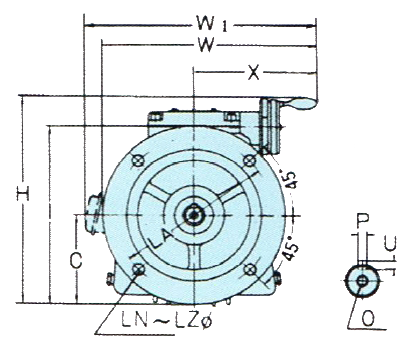

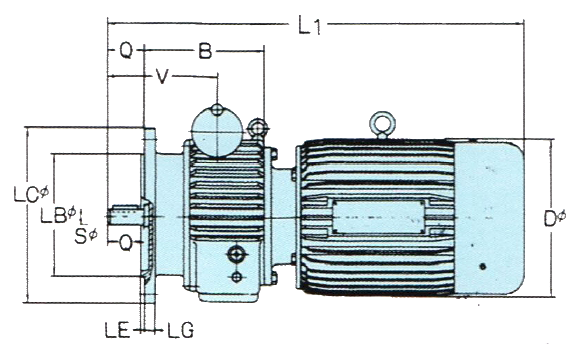

詳細說明
|
TYPE |
B |
C |
D |
H |
I |
L |
L1 |
LA |
LB |
LC |
LE |
LG |
LN |
LZ |
O |
O1 |
P |
P1 |
Q |
Q1 |
S(h6) |
S1(h6) |
U |
U1 |
V |
W |
W1 |
X |
|
D002F(4M) |
100 |
66 |
14 |
182 |
142 |
204 |
355 |
130 |
110 |
160 |
3.5 |
12 |
4 |
10 |
M6 |
M6 |
5 |
5 |
30 |
30 |
14 |
14 |
5 |
5 |
100 |
195 |
210 |
125 |
|
D004F(4M) |
123 |
87 |
162 |
215 |
174 |
230 |
402 |
130 |
110 |
160 |
3.5 |
12 |
4 |
10 |
M6 |
M6 |
5 |
5 |
30 |
30 |
14 |
14 |
5 |
5 |
110 |
240 |
290 |
150 |
|
D007F(4M) |
140 |
103 |
177 |
255 |
205 |
270 |
425 |
165 |
130 |
200 |
3.5 |
12 |
4 |
12 |
M6 |
M6 |
6 |
6 |
40 |
40 |
19 |
19 |
6 |
6 |
130 |
270 |
310 |
170 |
|
D015F(4M) |
175 |
120 |
200 |
308 |
241 |
335 |
560 |
165 |
130 |
200 |
3.5 |
12 |
4 |
12 |
M6 |
M6 |
8 |
8 |
50 |
50 |
24 |
24 |
7 |
7 |
160 |
313 |
345 |
190 |
|
D022F(4M) |
208 |
147 |
219 |
375 |
295 |
400 |
585 |
215 |
180 |
250 |
4 |
16 |
4 |
15 |
M8 |
M8 |
8 |
8 |
60 |
60 |
28 |
28 |
7 |
7 |
190 |
370 |
390 |
220 |
|
D037F(4M) |
208 |
147 |
238 |
375 |
295 |
400 |
641 |
215 |
180 |
250 |
4 |
16 |
4 |
15 |
M8 |
M8 |
8 |
8 |
60 |
60 |
28 |
28 |
7 |
7 |
190 |
370 |
390 |
220 |
|
D055F(4M) |
249 |
184 |
273 |
459 |
373 |
470 |
695 |
265 |
230 |
300 |
4 |
20 |
4 |
15 |
M10 |
M10 |
10 |
10 |
80 |
70 |
38 |
32 |
8 |
8 |
211 |
430 |
365 |
250 |
|
D075F(4M) |
249 |
184 |
273 |
459 |
373 |
470 |
733 |
265 |
230 |
300 |
4 |
20 |
4 |
15 |
M10 |
M10 |
10 |
10 |
80 |
70 |
38 |
32 |
8 |
8 |
211 |
430 |
365 |
250 |
