聯軸器
SHC-C 鋼片聯軸器
詳細說明

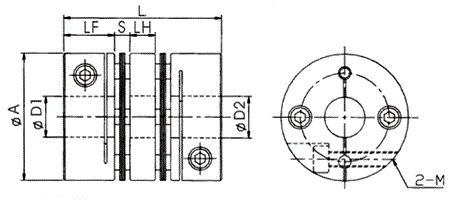

尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
LF |
S |
L |
M |
G |
B |
D1 x D2 |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
|||||||||||
|
SHC-27C |
27 |
10.8 |
2.9 |
34.9 |
M3 |
3.5 |
9 |
5 |
10 |
|
|
|
|
SHC-35C |
35 |
12 |
3 |
38 |
M3 |
4.5 |
12 |
6 |
15 |
|
|
|
|
SHC-40C |
40 |
15.5 |
3.3 |
47.6 |
M4 |
4.8 |
14 |
8 |
16 |
|
|
|
|
SHC-45C |
45 |
15.5 |
3.6 |
48.2 |
M4 |
4.8 |
16.5 |
10 |
19 |
|
|
|
|
SHC-56C |
56 |
20.5 |
4 |
62 |
M5 |
6.5 |
21 |
12 |
25 |
|
|
|
|
SHC-68C |
68 |
24.5 |
4.2 |
73.4 |
M6 |
7.2 |
24 |
14 |
32 |
|
|
|
|
SHC-82C |
82 |
29.8 |
8.8 |
98.7 |
M8 |
9 |
28 |
19 |
35 |
|
|
|
|
SHC-94C |
94 |
30 |
9.4 |
100.8 |
M8 |
9 |
33 |
22 |
45 |
|
|
|
|
SHC-104C |
104 |
30 |
10 |
102 |
M8 |
9 |
39 |
22 |
48 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / Dimension
|
規 格 No. |
常用扭力 Rated Torque (N.m) |
最大扭力 Torque (N.m) |
容許角度偏差 Allowable Angular Error |
最高轉速 Max. Rotational (rpm) |
慣性矩 Moment of Inertia (Kg.m²) |
重量 Weight (g) |
||
|
偏心 Error of Eccentricity (mm) |
偏角 Error of Angularity (o) |
軸向位移 Axial End- Play (mm) |
||||||
|
SHC-27C |
1.8 |
3.6 |
0.15 |
1 |
±0.33 |
10000 |
3.41 x 10-6 |
35.0 |
|
SHC-35C |
4.0 |
8.0 |
0.17 |
1 |
±0.40 |
10000 |
11.3 x 10-6 |
62.0 |
|
SHC-40C |
6.0 |
14.0 |
0.23 |
1 |
±0.50 |
10000 |
26.3 x 10-6 |
116.0 |
|
SHC-45C |
10.0 |
20.0 |
0.23 |
1 |
±0.60 |
10000 |
41.7 x 10-6 |
131.0 |
|
SHC-56C |
25.0 |
52.0 |
0.27 |
1 |
±0.80 |
10000 |
136.1 x 10-6 |
310.0 |
|
SHC-68C |
60.0 |
124.0 |
0.31 |
1 |
±0.90 |
10000 |
366.9 x 10-6 |
365.0 |
|
SHC-82C |
100.0 |
200.0 |
0.52 |
1 |
±1.10 |
10000 |
1070 x 10-6 |
1300.0 |
|
SHC-94C |
180.0 |
360.0 |
0.50 |
1 |
±1.3 |
10000 |
1750 x 10-6 |
1500.0 |
|
SHC-104C |
250.0 |
500.0 |
0.50 |
1 |
±1.6 |
10000 |
2650 x 10-6 |
1500.0 |
◆ 特性 / Fratures
○ 高剛性 / High Rigidity ○ 適用於伺服馬達 / Applicable for Servo Motor
○ 高扭力 / High Torque ○ 緩衝材：不銹鋼彈片 / Buffer Material：Stainless
○ 低慣性 / Low Moment of Inertia ○ 固定方式：夾緊式 / Fix type:Clamping
○ 零背隙 / Backlash-free
