聯軸器
SQR-C 夾緊式撓性聯軸器
詳細說明

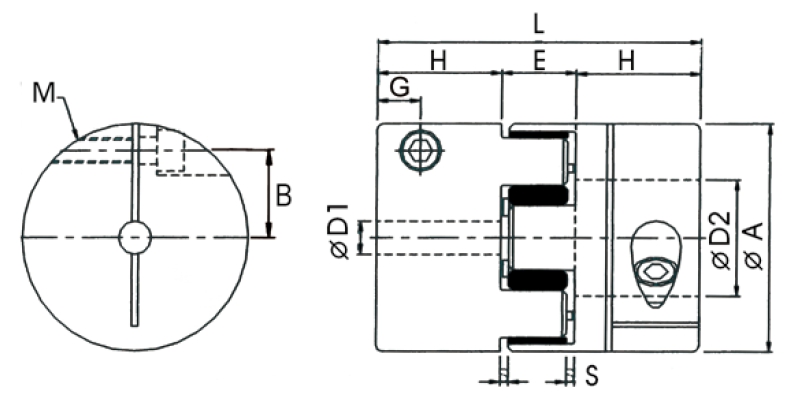

尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
G |
D1 |
D2 |
E |
H |
S |
L |
M |
B |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
||
|
min |
max |
min |
max |
||||||||||||
|
SQR-30C |
30 |
5.5 |
6 |
15 |
6 |
15 |
13 |
11 |
1.5 |
35 |
M4 |
10.5 |
|
|
|
|
SQR-40C |
40 |
8.5 |
8 |
20 |
8 |
20 |
16 |
25 |
2 |
66 |
M5 |
15 |
|
|
|
|
SQR-55C |
55 |
10.5 |
10 |
25 |
10 |
25 |
18 |
30 |
2 |
78 |
M6 |
21 |
|
|
|
|
SQR-65C |
65 |
13 |
12 |
35 |
12 |
35 |
20 |
35 |
2.5 |
90 |
M8 |
24 |
|
|
|
|
SQR-80C |
80 |
14 |
16 |
45 |
16 |
45 |
24 |
45 |
3 |
114 |
M10 |
29 |
|
|
|
|
SQR-95C |
95 |
16 |
20 |
55 |
20 |
55 |
26 |
50 |
3 |
126 |
M10 |
35 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / specification
|
規 格 No. |
常用扭力 Rated Torque (N.m) |
最大扭力 Max Torque (N.m) |
容許誤差 Allowable Errors |
最高轉速 Max. Rotational (rpm) |
剛性靜扭力值 Static torsion Rigidity (N.m/rad) |
慣性矩 Moment of Inertia (Kg.m²) |
重量 Weight (g) |
||
|
偏心 Error of Eccertricity (mm) |
偏角 Error of Angularity (o) |
軸向位移 Axial End- Play (mm) |
|||||||
|
SQR-30C |
12.5 |
25 |
0.1 |
1 |
+1.0 |
10000 |
135 |
6.2 x 10-6 |
40 |
|
SQR-40C |
17 |
34 |
0.1 |
1 |
+1.2 |
10000 |
1100 |
3.9 x 10-5 |
150 |
|
SQR-55C |
60 |
120 |
0.1 |
1 |
+1.4 |
7000 |
3200 |
1.6 x 10-4 |
350 |
|
SQR-65C |
160 |
320 |
0.1 |
1 |
+1.5 |
5900 |
4900 |
3.8 x 10-4 |
500 |
|
SQR-80C |
325 |
650 |
0.1 |
1 |
+1.8 |
4800 |
7400 |
1.1 x 10-3 |
1000 |
|
SQR-95C |
450 |
900 |
0.1 |
1 |
+2.0 |
3600 |
14000 |
1.9 x 10-3 |
1500 |
◆特性 / Features
○ 高扭力，高剛性 / High Torque, High Rigidity
○ 可正逆轉特性 / High Clockwise and Anticlockwise Rotational Characteristics
○ 低慣性，無背隙 / Low Inertia, Backlash-free
○ 適用於伺服馬達或精密定位傳動 / Applicable for Servo Motor or Precise Positioning Transmission
○ 免保養，壽命長 / Maintenance-free; Infinite Life
○ 固定方式：夾緊式 / Fix Type : Clamping
○ 本體：鋁合金材質 / Body : Aluminum Alloy Body ; Light-weight
○ 使用溫度範圍-30℃∼100℃ / Working range, -30℃∼100℃ Temperature
