聯軸器

SOL 止付螺絲十字滑動型

SOL 止付螺絲十字滑動型

詳細說明

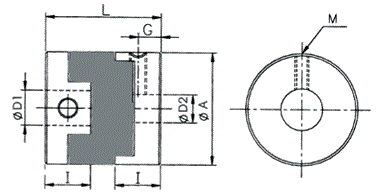

尺寸表 / Dimension

單位(mm)

規 格

No.

A

I

L

G

M

D1 - D2

重量

Weight

(g)

PDF

圖檔

DWG

圖檔

3D

圖檔

min

max

SOL-16

16

7

18

3.5

M3

4

6.35

7







SOL-20

20

9

23

4.5

M4

5

8

14







SOL-25

25

11

28

5.5

M5

5

10

27







SOL-32

32

13

33

6.5

M6

8

14

50







SOL-40

40

14

35

7

M6

10

16

80







SOL-50

50

17

38

8.5

M8

14

20

150







SOL-63

63

21

47

10.5

M10

15

25

300







* 3D圖檔下載需要安裝SolidWorks軟體才能打開

特性表 / specification

規 格

No.

常用扭力

Rated

Torque

(N.m)

最大扭力

Max.

Torque

(N.m)

最高轉數

Max.

Rotational

(rpm)

慣性矩

Moment of

Inertia

(Kg.m²)

剛性靜扭力值

Staic Torional

Stiffness

(N-m/rad)

容許偏心

Allowable

Eccentricity

Error

(mm)

容許角度偏差

Allowable  Errors

(o)

SOL-16

0.7

1.4

9500

3.2 x 10-7

31

1.0

3

SOL-20

1.2

2.4

7600

1.0 x 10-6

60

1.5

3

SOL-25

2

4

6100

3.0 x 10-6

140

2.0

3

SOL-32

4.5

9

4800

9.5 x 10-6

280

2.5

3

SOL-40

9

18

3800

2.3 x 10-5

540

3.0

3

SOL-50

18

36

3100

6.7 x 10-5

820

3.5

3

SOL-63

36

72

2400

2.2 x 10-4

1900

4.0

3

◆ 特性 / Fratures

○ 高剛性 / High Rigidity

○ 絕緣性佳 / Electrical Insulation

○ 組合容易 / Easy Assembly

○ 耐油性 / Oil Resistance

○ 容許偏心、偏角大 / High Allowable Error of Eccentricity and Angularity Misa lignmengt

○ 緩衝材:工程塑膠 / Buffer Material : Engineering Plastic

○ 固定方式:止付螺絲 / Fix Type:Clamping

○ 使用溫度範圍-30℃~ 100℃ / Working range,-30℃~100℃ Temperature
