聯軸器
SOL-C 夾緊式十字滑動型
詳細說明

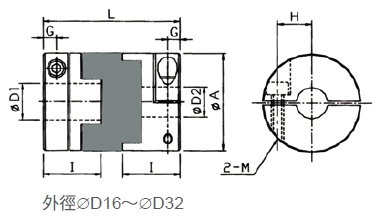

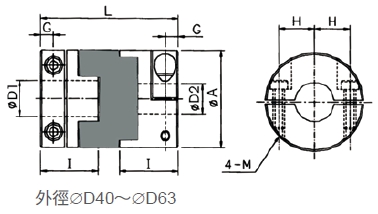

尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
I |
L |
G |
H |
M |
D1 - D2 |
D1 - D2 |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
|||||||||||
|
SOL-16C |
16 |
13 |
29 |
3 |
5 |
M2.5 |
5 |
6.35 |
12 |
|
|
|
|
SOL-20C |
20 |
14 |
33 |
3 |
6.5 |
M3 |
6 |
8 |
19 |
|
|
|
|
SOL-25C |
25 |
17 |
39 |
3.8 |
9 |
M3 |
6 |
10 |
36 |
|
|
|
|
SOL-32C |
32 |
19 |
45 |
4.5 |
11 |
M4 |
8 |
12 |
69 |
|
|
|
|
SOL-40C |
40 |
23 |
50 |
6 |
13 |
M5 |
10 |
16 |
130 |
|
|
|
|
SOL-50C |
50 |
27 |
58 |
7.5 |
16 |
M6 |
12 |
20 |
230 |
|
|
|
|
SOL-63C |
63 |
33 |
71 |
9 |
21 |
M8 |
18 |
25 |
450 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / specification
|
規 格 No. |
常用扭力 Rated Torque (N.m) |
最大扭力 Max. Torque (N.m) |
最高轉數 Max. Rotational (rpm) |
慣性矩 Moment of Inertia (Kg.m²) |
剛性靜扭力值 Staic Torional Stiffness (N-m/rad) |
容許偏心 Allowable Eccentricity Error (mm) |
容許角度偏差 Allowable Errors (o) |
|
SOL-16C |
0.7 |
1.4 |
9500 |
5.8 x 10-7 |
31 |
1.0 |
3 |
|
SOL-20C |
1.2 |
2.4 |
7600 |
1.5 x 10-6 |
60 |
1.5 |
3 |
|
SOL-25C |
2 |
4 |
6100 |
4.4 x 10-6 |
140 |
2.0 |
3 |
|
SOL-32C |
4.5 |
9 |
4800 |
1.4 x 10-6 |
280 |
2.5 |
3 |
|
SOL-40C |
9 |
18 |
3800 |
4.1 x 10-5 |
540 |
3.0 |
3 |
|
SOL-50C |
18 |
36 |
3100 |
1.2 x 10-5 |
820 |
3.5 |
3 |
|
SOL-63C |
36 |
72 |
2400 |
3.7 x 10-4 |
1900 |
4.0 |
3 |
◆ 特性 / Fratures
○ 高剛性 / High Rigidity
○ 絕緣性佳 / Electrical Insulation
○ 組合容易 / Easy Assembly
○ 耐油性 / Oil Resistance
○ 容許偏心、偏角大 / High Allowable Error of Eccentricity and Angularity Misa lignmengt
○ 緩衝材：工程塑膠 / Buffer Material ： Engineering Plastic
○ 固定方式：夾緊式 / Fix Type：Clamping
○ 使用溫度範圍-30℃~ 100℃ / Working range,-30℃~100℃ Temperature
