齒輪減速機

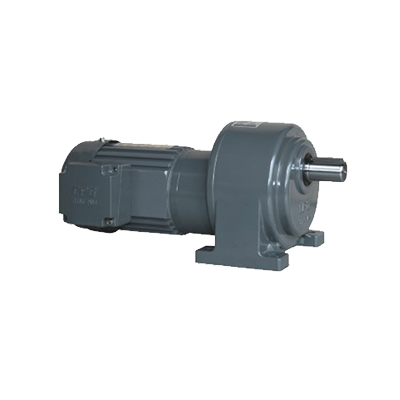

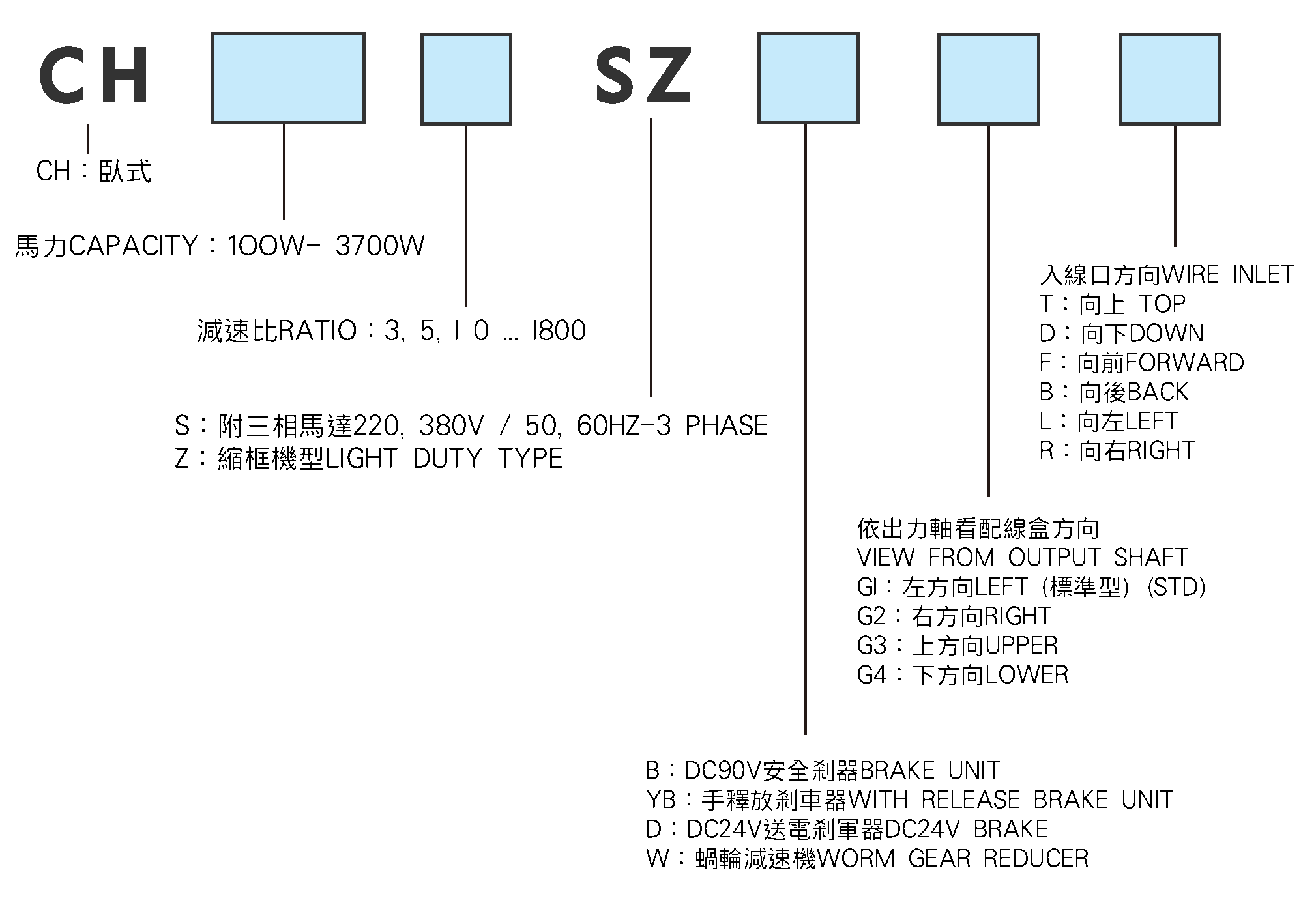

CH..SZ(CH..SZB) 臥式高速比附三相縮框鋁殼(剎車)馬達減速機
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮22 |
40 |
7 |
25 |
35 |
7*7*35 |
|
∮28 |
45 |
7 |
31.5 |
40 |
7*7*40 |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
適用機型 / APPLIC ABLE MODELS : CH..SZ, CH..STZ, CH..SZB, CH..STZB
詳細說明

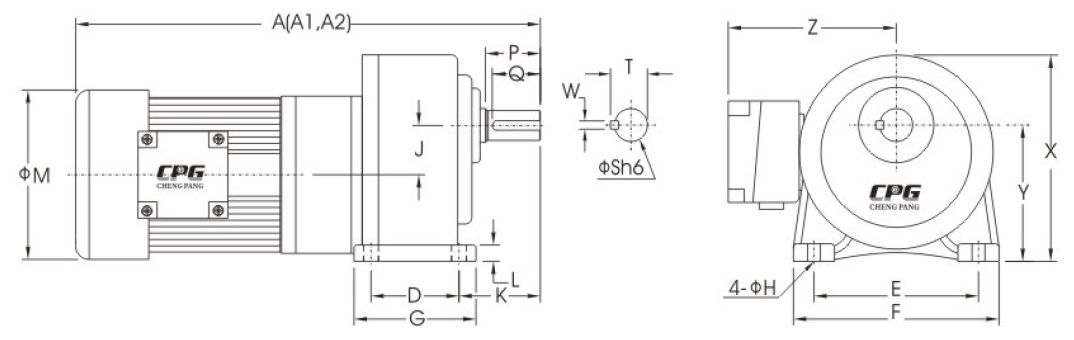

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
本體 CODE |
型番 SIZE(S) |
A |
A1 |
A2 |
D |
E |
F |
G |
H |
J |
K |
L |
M |
X |
Y |
Z |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
100W |
250-1800 |
1#+2# |
22 |
345 |
345 |
345 |
65 |
130 |
158 |
90 |
11 |
33.5 |
60 |
13 |
133 |
152 |
97.5 |
120 |
|
|
|
|
200W |
250-1800 |
1#+3# |
28 |
410 |
410 |
410 |
90 |
140 |
178 |
120 |
12 |
39 |
68 |
17 |
133 |
178 |
116 |
120 |
|
|
|
|
400W |
250-1800 |
2#+4# |
32 |
480 |
480 |
480 |
130 |
170 |
210 |
165 |
13 |
47.5 |
70 |
23 |
167 |
212 |
140 |
135 |
|
|
|
|
750W |
250-1800 |
3#+5# |
40 |
570 |
570 |
570 |
150 |
210 |
265 |
198 |
15 |
59 |
89 |
24 |
167 |
250 |
162 |
135 |
|
|
|
備註：A : 三相鋁殼馬達 / WITH 3-PHASE ALUMINUM MOTOR.
Al : 三相鐵殼馬達 / WITH 3-PHASE STEEL PLATE MOTOR.
A2 : 三相馬達附剎車器 / WITH 3-PHASE BRAKE MOTOR.
