齒輪減速機
CH..AZ(CH..AZB) 臥式附單相縮框鐵殼(剎車)馬達減速機
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮18 |
30 |
5 |
20.2 |
27 |
5*5*27 |
|
∮22 |
40 |
7 |
25 |
35 |
7*7*35 |
|
∮28 |
45 |
7 |
31.1 |
40 |
7*7*40 |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
適用機型 / APPLIC ABLE MODELS : CH..ATZ, CH..ATZB
詳細說明

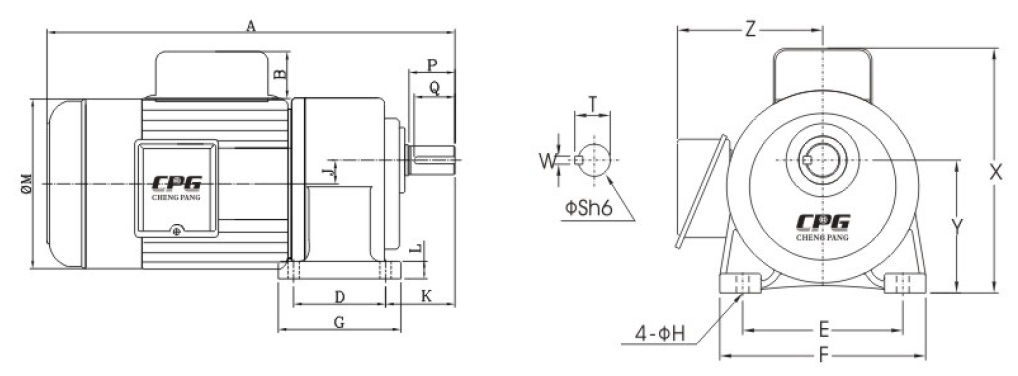

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
本體 CODE |
型番 SIZE(S) |
A |
B |
D |
E |
F |
G |
H |
J |
K |
L |
M |
X |
Y |
Z |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
100W |
60-160 |
1# |
18 |
260 |
40 |
110 |
135 |
65 |
9 |
16 |
50 |
10 |
133 |
138 |
88.5 |
120 |
|
|
|
|
|
200W |
15-90 |
1# |
18 |
295 |
40 |
110 |
135 |
65 |
9 |
16 |
50 |
10 |
133 |
138 |
88.5 |
120 |
|
|
|
|
|
100-200 |
2# |
22 |
315 |
65 |
130 |
158 |
90 |
11 |
17.5 |
60 |
13 |
133 |
152 |
97.5 |
120 |
|
|
|
||
|
400W |
15-90 |
2# |
22 |
375 |
50 |
65 |
130 |
158 |
90 |
11 |
17.5 |
60 |
13 |
167 |
215 |
97.5 |
135 |
|
|
|
|
100-175 |
3# |
28 |
405 |
50 |
90 |
140 |
178 |
120 |
12 |
23 |
68 |
17 |
167 |
230 |
116 |
135 |
|
|
|
|
|
750W |
3-25 |
2# |
22 |
395 |
50 |
65 |
130 |
158 |
90 |
11 |
17.5 |
60 |
13 |
167 |
215 |
97.5 |
135 |
|
|
|
|
30-120 |
3# |
28 |
425 |
50 |
90 |
140 |
178 |
120 |
12 |
23 |
68 |
17 |
167 |
230 |
116 |
135 |
|
|
|
|
|
125-200 |
4# |
32 |
455 |
50 |
130 |
170 |
210 |
165 |
13 |
30 |
70 |
23 |
167 |
245 |
140 |
135 |
|
|
|
|
|
1500W |
3-30 |
3# |
28 |
440 |
50 |
90 |
140 |
178 |
120 |
12 |
23 |
68 |
17 |
192 |
240 |
116 |
146 |
|
|
|
|
40-100 |
4# |
32 |
470 |
50 |
130 |
170 |
210 |
165 |
13 |
30 |
70 |
23 |
192 |
260 |
140 |
146 |
|
|
|
|
|
110-180 |
5# |
40 |
530 |
50 |
150 |
210 |
265 |
198 |
15 |
36 |
89 |
24 |
192 |
275 |
162 |
146 |
|
|
|
備註：單相剎車馬達尺寸另議 / CONTACT FOR BRAKE TYPE DIMENSIONS.
* : 屬於B型出力法蘭 / * BELONG TO B TYPE OUTPUT FLANGE.
