齒輪減速機

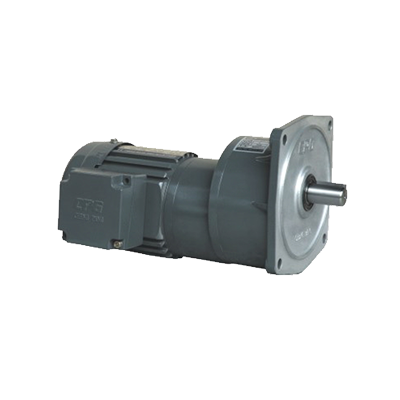

CV..S(CV..SB) 立式高速比附三相鋁殼(剎車)馬達減速機
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮28 |
45 |
7 |
31.1 |
40 |
7*7*40 |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
|
∮50 |
80 |
14 |
54 |
75 |
14*9*75 |
適用機型 / APPLIC ABLE MODELS : CV..S, CV..ST, CV..SB, CV..STB
詳細說明

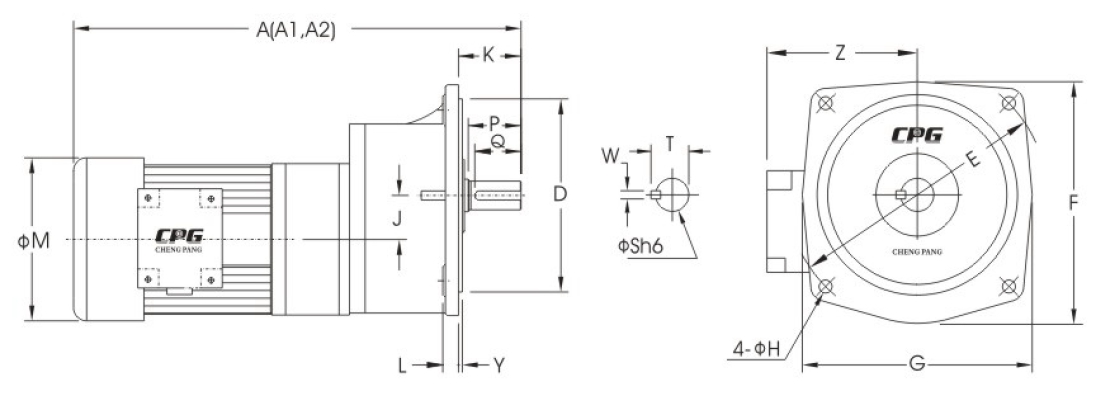

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
本體 CODE |
型番 SIZE(S) |
A |
A1 |
A2 |
D |
E |
F |
G |
H |
J |
K |
L |
M |
Y |
Z |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
100W |
250-1800 |
1#+3# |
28 |
375 |
375 |
375 |
170 |
220 |
205 |
195 |
12 |
39 |
58 |
13 |
133 |
3 |
120 |
|
|
|
|
200W |
250-1800 |
2#+4# |
32 |
460 |
460 |
460 |
185 |
255 |
248 |
225 |
15 |
47.5 |
65 |
16 |
133 |
3 |
120 |
|
|
|
|
400W |
250-1800 |
3#+5# |
40 |
550 |
550 |
550 |
230 |
310 |
291 |
272 |
15 |
59 |
85 |
21 |
167 |
5 |
135 |
|
|
|
|
750W |
250-1800 |
3#+6# |
50 |
620 |
620 |
620 |
280 |
390 |
372 |
342 |
18 |
74 |
92 |
25 |
167 |
5 |
135 |
|
|
|
|
1500W |
250-1800 |
4#+6# |
50 |
690 |
690 |
690 |
280 |
390 |
372 |
342 |
18 |
81 |
92 |
25 |
192 |
5 |
146 |
|
|
|
備註：A : 三相鋁殼馬達 / WITH 3-PHASE ALUMINUM MOTOR.
A1 : 三相鐵殼馬達 / WITH 3-PHASE STEEL PLATE MOTOR.
A2 : 三相馬達附剎車器 / WITH 3-PHASE BRAKE MOTOR.
