齒輪減速機

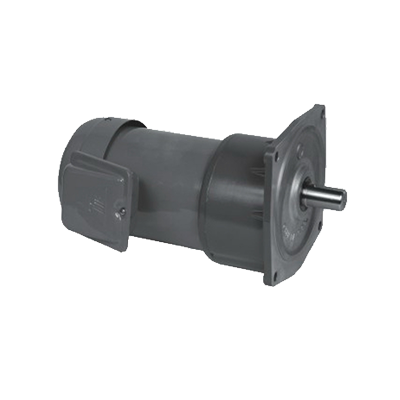

CV..P(CV..PB) 立式附東元鐵殼(剎車)馬達
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮22 |
40 |
7 |
25 |
35 |
7*7*35 |
|
∮28 |
45 |
7 |
31.1 |
40 |
7*7*40 |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
|
∮50 |
80 |
14 |
54 |
75 |
14*9*75 |

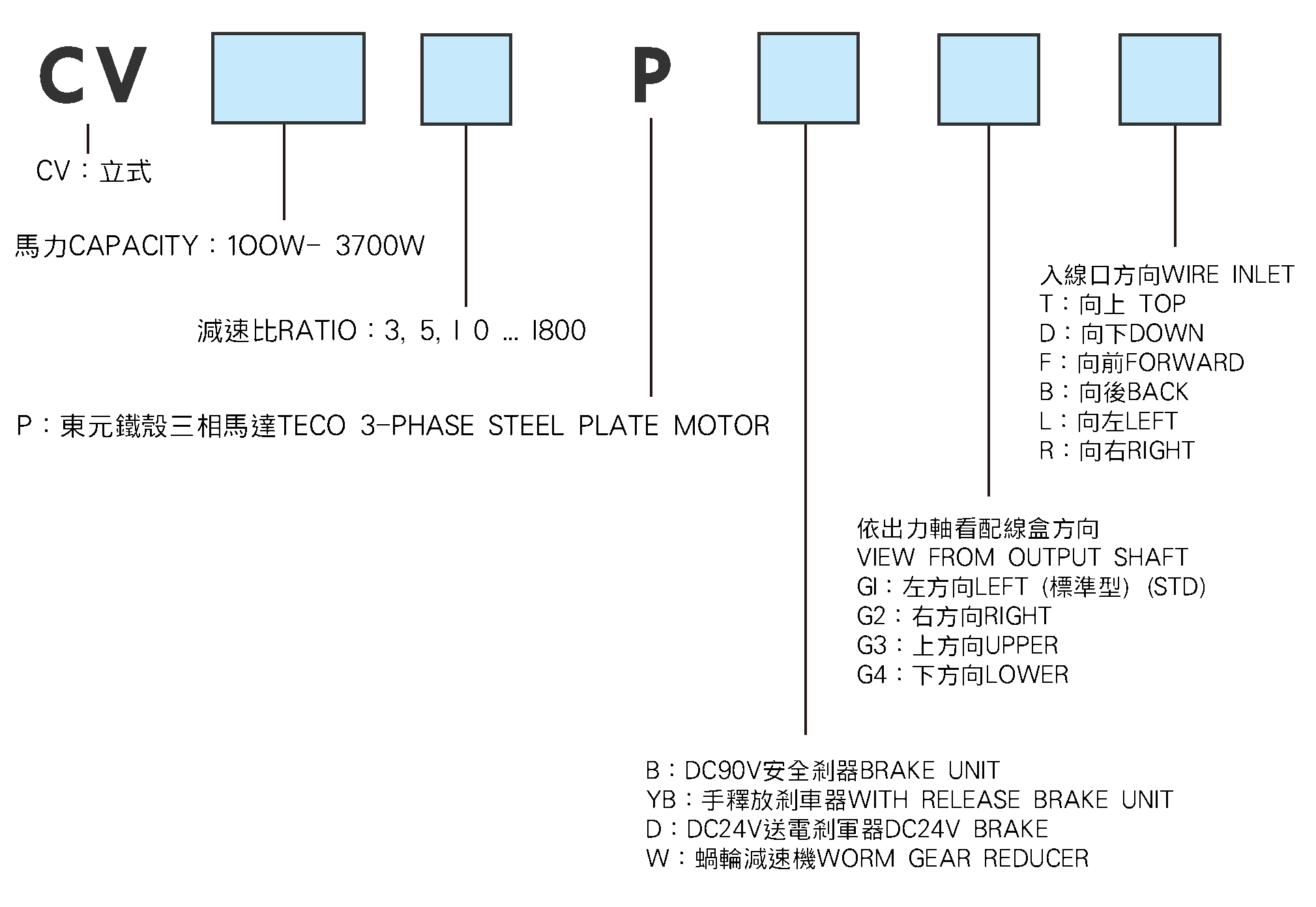

適用機型 / APPLIC ABLE MODELS : CV..P, CV..PB
詳細說明

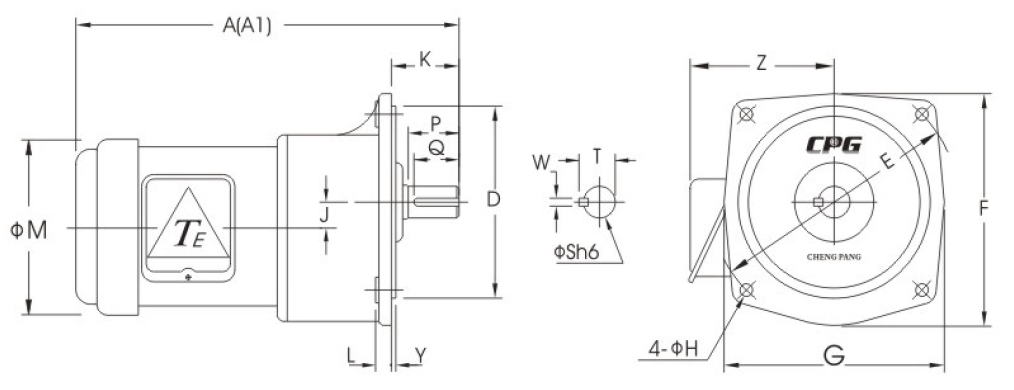

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
本體 CODE |
型番 SIZE(S) |
A |
A1 |
D |
E |
F |
G |
H |
J |
K |
L |
M |
Y |
Z |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
200W |
3-90 |
2# |
22 |
320 |
320 |
148 |
185 |
175 |
165 |
11 |
17.5 |
48 |
12 |
131 |
3 |
130 |
|
|
|
|
100-200 |
3# |
28 |
350 |
350 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
131 |
3 |
130 |
|
|
|
|
|
400W |
3-10 |
2# |
22 |
330 |
330 |
148 |
185 |
175 |
165 |
11 |
17.5 |
48 |
12 |
144 |
3 |
135 |
|
|
|
|
15-90 |
3# |
28 |
360 |
360 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
144 |
3 |
135 |
|
|
|
|
|
100-200 |
4# |
32 |
390 |
390 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
144 |
3 |
135 |
|
|
|
|
|
750W |
3-25 |
3# |
28 |
375 |
375 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
163 |
3 |
150 |
|
|
|
|
30-120 |
4# |
32 |
410 |
410 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
163 |
3 |
150 |
|
|
|
|
|
125-200 |
5# |
40 |
460 |
460 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
163 |
5 |
150 |
|
|
|
|
|
1500W |
3-30 |
4# |
32 |
450 |
450 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
184 |
3 |
162 |
|
|
|
|
40-100 |
5# |
40 |
500 |
500 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
184 |
5 |
162 |
|
|
|
|
|
105-120 |
6# |
50 |
560 |
560 |
280 |
390 |
372 |
342 |
18 |
51 |
92 |
25 |
184 |
5 |
162 |
|
|
|
備註：A : 三相鐵殼東元馬達 / WITH 3-PHASE TECO MOTOR.
Al : 三相鐵殼東元馬達附剎車器 / WITH 3-PHASE TECO BRAKE MOTOR.
